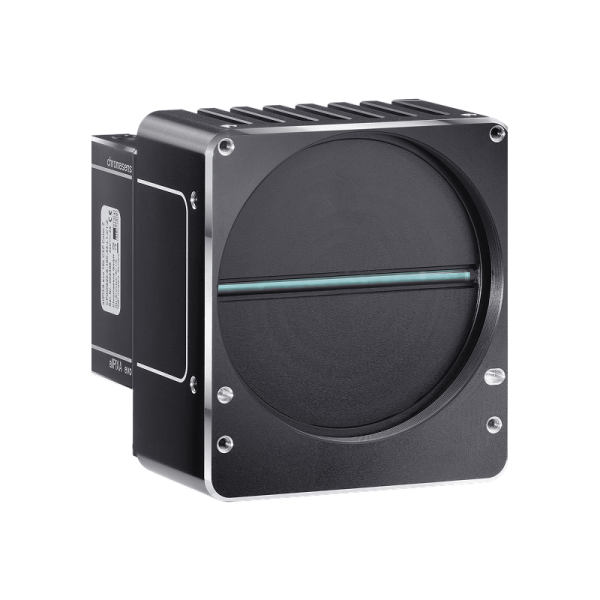

allPIXA evo 线扫相机系列
高分辨率 8k–32k；三线及多线 CMOS
allPIXA evo 面向需要极高横向分辨率与稳定线速的检测场景，官网标称分辨率约 8192–32768 px、行频约 37–100 kHz，并可配备四路 CoaXPress-12 与双万兆网等接口选项（依型号而定）。以下为本站同步自 Allied Vision 中文站的型号规格汇总表，便于与面阵 Alvium 系列在同一选型流程中对照。
allPIXA evo 型号规格汇总
当前显示 15 / 15 条
点击表头执行排序
| allPIXA evo 32K CXP Mono Y | 32768×1 | 73 kHz | mono | allPIXA evo CXP | 5.00 µm | 400nm-1000nm | — | CoaXPress2.0 | — | M95 × 1 mm | 1 × 8, 10, 12 Bit mono | 查看 PDF |
| allPIXA evo 32K CXP Mono Z | 32768×1 | 73 kHz | mono | allPIXA evo CXP | 5.00 µm | 400nm-1000nm | — | CoaXPress2.0 | — | M95 × 1 mm | 1 × 8, 10, 12 Bit mono | 查看 PDF |
| allPIXA evo 16k CXP Color Y | 16384×4 | 73 kHz | color | allPIXA evo CXP | 5.00 µm | 1000nm-1000nm | — | CoaXPress2.0 | — | M95 × 1 mm | 3 × 8, 10, 12 Bit color or1 × 8, 10, 12 Bit mono or | 查看 PDF |
| allPIXA evo 16k CXP Color Z | 16384×4 | 73 kHz | color | allPIXA evo CXP | 5.00 µm | 1000nm-1000nm | — | CoaXPress2.0 | — | M95 × 1 mm | 3 × 8, 10, 12 Bit color or1 × 8, 10, 12 Bit mono or | 查看 PDF |
| allPIXA evo 15k CXP Color | 15360×3 | 68 kHz | color | allPIXA evo CXP | 5.60 µm | 360nm-960nm | — | CoaXPress2.0 | — | M95 × 1 mm | 3 × 8, 10, 12 Bit color | 查看 PDF |
| allPIXA evo 15k CXP Mono | 15360×3 | 68 kHz | mono | allPIXA evo CXP | 5.60 µm | 360nm-960nm | — | CoaXPress2.0 | — | M95 × 1 mm | 1 × 8, 10, 12 Bit mono | 查看 PDF |
| allPIXA evo 15k DXGE Color | 15360×3 | 48 kHz | color | allPIXA evo 10GigE | 5.60 µm | 360nm-960nm | — | 2× 10 gige over fiber | — | M95 × 1 mm | 3 × 8, 10, 12 Bit color | 查看 PDF |
| allPIXA evo 15k DXGE Mono | 15360×3 | 68 kHz | mono | allPIXA evo 10GigE | 5.60 µm | 360nm-960nm | — | 2× 10 gige over fiber | — | M95 × 1 mm | 1 × 8, 10, 12 Bit mono | 查看 PDF |
| allPIXA evo 10k CXP Color | 10240×3 | 68 kHz | color | allPIXA evo CXP | 5.60 µm | 360nm-960nm | — | CoaXPress2.0 | — | M72 × 0.75 mm / F-mount | 3 × 8, 10, 12 Bit color | 查看 PDF |
| allPIXA evo 10k CXP Mono | 10240×3 | 68 kHz | mono | allPIXA evo CXP | 5.60 µm | 360nm-960nm | — | CoaXPress2.0 | — | M72 × 0.75 mm / F-mount | 1 × 8, 10, 12 Bit mono | 查看 PDF |
| allPIXA evo 10k DXGE Color | 10240×3 | 68 kHz | color | allPIXA evo 10GigE | — | 360nm-960nm | — | 2× 10 gige over fiber | — | M72 × 0.75 mm / F-mount | 3 × 8, 10, 12 Bit color | 查看 PDF |
| allPIXA evo 10k DXGE Mono | 10240×3 | 68 kHz | mono | allPIXA evo 10GigE | 5.60 µm | 360nm-960nm | — | 2× 10 gige over fiber | — | M72 × 0.75 mm / F-mount | 1 × 8, 10, 12 Bit mono | 查看 PDF |
| allPIXA evo 8k CXP Y | 8192×4 | 100 kHz | color | allPIXA evo CXP | 5.00 µm | 360nm-960nm | — | CoaXPress2.0 | — | M72 × 0.75 mm / F-mount | 3 × 8, 10, 12 Bit color or1 × 8, 10, 12 Bit mono or4 × 8, 10, 12 RGB + NIR | 查看 PDF |
| allPIXA evo 8k CXP Z | 8192×4 | 100 kHz | color | allPIXA evo CXP | 5.00 µm | 360nm-960nm | — | CoaXPress2.0 | — | M72 × 0.75 mm / F-mount | 3 × 8, 10, 12 Bit color or1 × 8, 10, 12 Bit mono or4 × 8, 10, 12 RGB + NIR | 查看 PDF |
| allPIXA evo 8k DXGE X | 8192×4 | 100 kHz | color | allPIXA evo 10GigE | 5.00 µm | 360nm-960nm | — | 2× 10 gige over fiber | — | M72 × 0.75 mm / F-mount | 3 × 8, 10, 12 Bit color or1 × 8, 10, 12 Bit mono or4 × 8, 10, 12 RGB + NIR | 查看 PDF |
